WHY TOUGH?
5-YEAR HOUSING WARRANTY: Built for tough applicationsl
225 PSI PRESSURE RATING: High-pressure performance in a plastic dampener

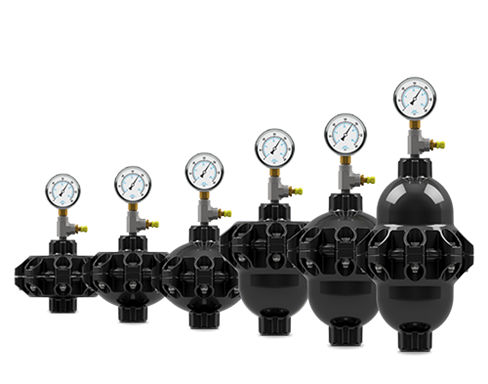

SIX AVAILABLE SIZES: From 16 to 90 cu. in.
CORROSION RESISTANT COMPONENTS: Stainless steel hardware and gauges
STAINLESS AIR CONTROL OPTIONS: Available for demanding environments
MULTIPLE MATERIAL OPTIONS: Housing and bladder/bellows materials available
AIR CONTROL OPTIONS
CHARGEABLE
No permanent source of compressed gas is required. With the gas fill valve, the dampener can be manually bled or charged to the required pressure setting.
ADJUSTABLE
With a compressed air line permanently attached, the regulator allows for an easy, convenient method to adjust dampener pressure with system pressure changes.
INLET STABILIZER
Allows for pressure or vacuum settings and is adjustable for suction lift or positive inlet conditions. No permanent source of compressed gas is required. Gas fill valve allows dampener to be manually bled or charged to the required pressure setting.
FULL SPECS
HOUSING MATERIALS: CPVC, PVC, PVDF, PVDF/PVC
DIAPHRAGM MATERIALS: Buna, EPDM, Hypalon, PTFE, Viton
INLET SIZES: 0.5" (15 mm), 0.75" (20 mm), 1" (25 mm)
INLET TYPES: FNPT, BSP, ANSI Flange, Socket Weld
PRESSURE RATING: 225 psi (15.5 bar) in plastic dampener
AIR CONTROLS: Chargeable, Chargeable SS, Adjustable, Adjustable SS, Inlet Stabilizer, Inlet Stabilizer SS

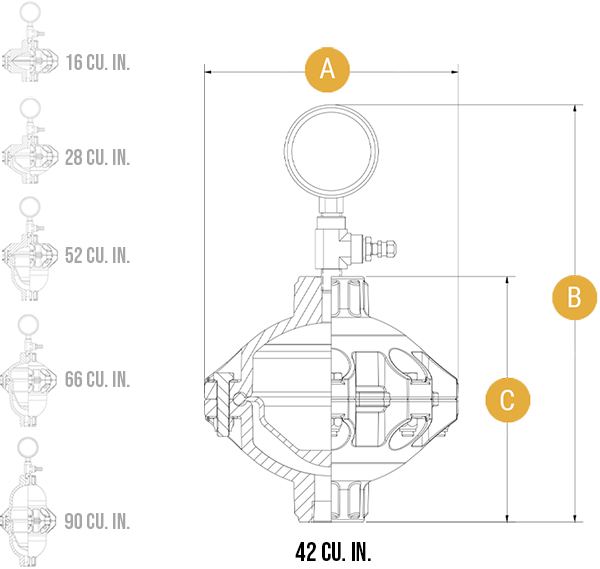

DIMENSIONS
Dimensions vary depending on configuration. Chargeable units shown below.
| UNIT |
A |
B |
C |
| 16 cu. in. |
Ø 6.75"
171.4mm |
9.69"
246.1mm |
5.09"
129.4mm |
| 28 cu. in. |
Ø 6.75"
171.4mm |
10.4"
264.1mm |
5.8"
147.4mm |
| 42 cu. in. |
Ø 6.75"
171.4mm |
11.16"
283.3mm |
6.56"
166.6mm |
| 52 cu. in. |
Ø 6.75"
171.4mm |
12.64"
321mm |
8.04"
204.3mm |
| 66 cu. in. |
Ø 6.75"
171.4mm |
13.39"
340.2mm |
8.8"
223.5mm |
| 90 cu. in. |
Ø 6.75"
171.4mm |
15.63"
397.1mm |
11.04"
280.4mm |
