Fundamental Spill Prevention

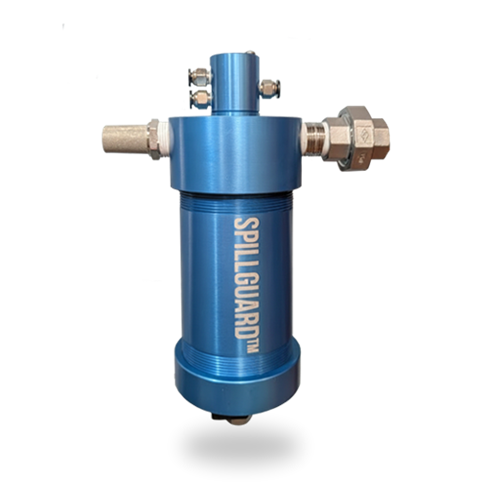

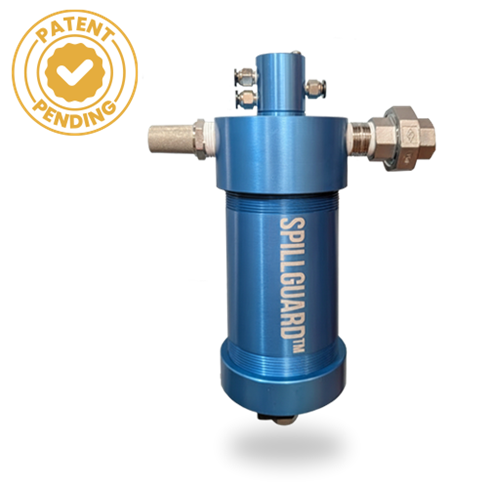

SPILLGUARD™ mounts directly to your AODD pump’s air exhaust. If a diaphragm fails, SPILLGUARD™ catches leaked fluid that would otherwise exit the muffler. If fluid collects, a float triggers the pneumatic shutoff, automatically stopping the pump. With its smaller size, up to 100mL may escape before shutdown, but major spills are prevented and nuisance leaks are contained fast.
Budget Friendly
SPILLGUARD™ gives you basic spill protection at a lower cost than full containment systems. It's a good fit where cleanup (not environmental risk) is the main concern.
Automatic Shutoff
If fluid triggers the float, your pump shuts down quickly. This helps you avoid prolonged leaks, lost product, and extra downtime.
Keeps Work Areas Cleaner
By catching leaks right at the exhaust, SPILLGUARD™ can limit how much you have to clean up after a diaphragm fails. Less mess, less hassle.
Smaller Design, Easy Install
Its compact build means it’s simple to attach directly to your existing AODD pump, with little extra footprint or setup. Can't squeeze it in by the pump? No problem! The optional stand ensures you can still include SPILLGUARD in a more convenient location.
Best for Non-Hazardous Materials
SPILLGUARD™ is intended for jobs where a spill is more of an inconvenience than a safety hazard—like food-grade, water, non-corrosive fluids, or less critical operations.
BODY MATERIALS: Aluminum
INTERNAL COMPONENTS: Polypropylene
INTERNAL FLOAT MATERIALS: Stainless Steel
PUMP SIZE: 0.5" - 2" AODD
INLET SIZE: 0.75" (19mm)
INLET TYPE: FNPT, Union
MAX DISCHARGE PRESSURE: 120 psi (8.27 bar)
ACTUATOR VALVE: Shop air regulated to 50 psig (3.45 bar)
OPTIONS: Optional stand available when direct mounting isn't possible

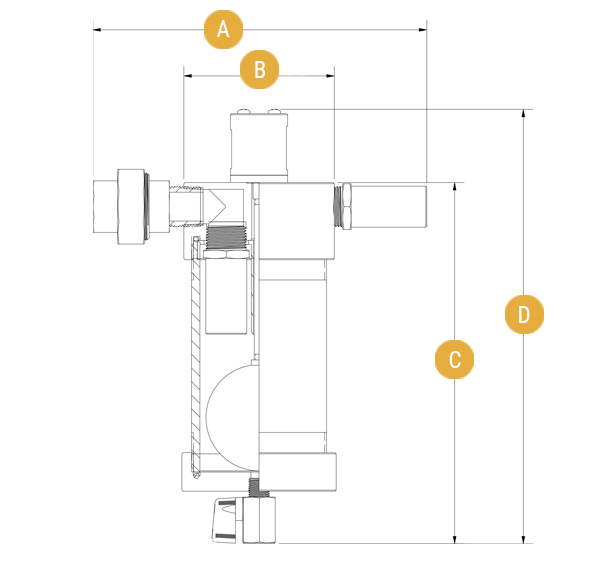

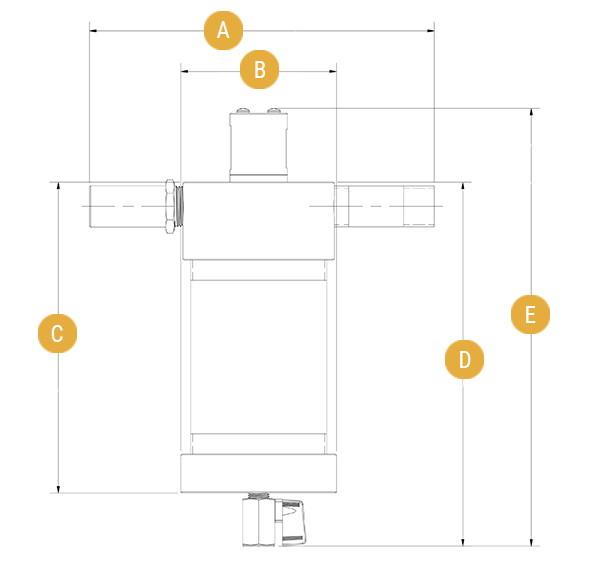

DIMENSIONS
(direct mount)
| A |
B |
C |
D |
8.66"
(220mm) |
3.90"
(99mm) |
9.37"
(238mm) |
11.26"
(286mm) |

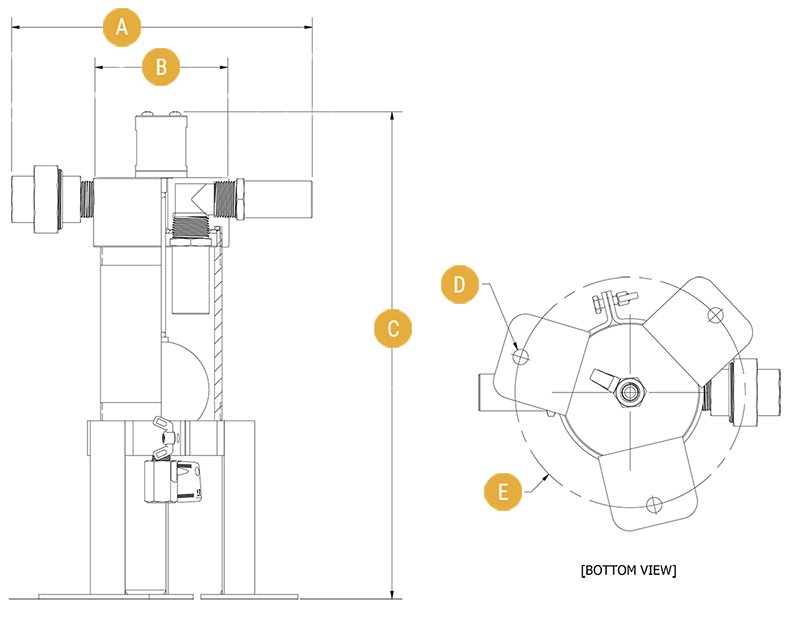

DIMENSIONS
(with stand)
| A |
B |
C |
D |
E |
8.66"
(220mm) |
3.90"
(99mm) |
14.02"
(356mm) |
0.44"
(11mm) |
6.63"
(168mm) |
